Technical specification



X axis - 500 mm/19.68 in

Y axis - 900 mm/35.43 in

Z axis - 400 mm/15.74 in

Resolution-  1 µm

MPEe - 5.0 + L/200 µm

MPEp - 4.5 µm

MPEthp - 6.5/85 µm/sec

Max load - 720 kg/1591 lbs

Software PC DMIS 2017



CMM SHEFFIELD DISCOVERY D12-II MEASURING MACHINE

2 x 8 megapixel GIgE CCD

Stereoscopic camera system

Three measurment ranges 700 x 500 mm2 300 x 240 mm2 170 x 120 mm2

Software ATOS Professional 2017



GOM 3D SCANNER

ALTIMETER MICRO-HITE 600





COATING THICKNESS GAUGE ISOSCOPE MP10



Technical specification



LCD screen

Electrically non-conductive coatings on a non-ferromagnetic substrate

Dimensions of tool - 160 x 80 x 30 mm

Dimensions of LCD - 60 x 30 mm







WALL THICKNESS GAUGE ECHOMETER 1074



Technical specification



LCD screen

Dimensions of LCD 44 x 16 mm

Sonda DSE 4.2/4 PB8 from 0.7 to 25 mm



Measuring range:

Resolution 0.1 mm -  0.1 mm, above 80 mm +/- 0.5%

Resolution 0.01 mm - 0.1 mm, above 80 mm +/- 0.5%

Resolution 0.001 cala - 0.002 cala, above 80 mm +/- 0.5%





CONDUCTOMETER





CONTACT US

 FADAL VMC 3016 3-AXIS MACHINING CENTER

Technical specification



Table - 406 mm x 990 mm/ 15.98 in x 38.97 in

Max table load - 1241 kg/2742 lbs

X axis - 762 mm/30 in

Y axis - 406 mm/15.98 in

Z axis - 508 mm/20 in

Spindle power - 13,2 kW/18 hp

Spindle speed - 10000 rpm







Technical specification



Max turning diameter - 533 mm/20.98 in

Max turning lenght - 660 mm/25.98 in

Spindle power - 26 kW/35 hp

Spindle speed - 6000 rpm



HAAS ST-30 CNC LATHE

Technical specification



Table - 356 mm x 914 mm/14.01 in x 13.98 in

Max table load -  1361 kg/3007 lbs

X axis - 762 mm/30 in

Y axis - 406 mm/15.98 in

Z axis - 508 mm/20 in

Spindle power - 15 kW/20 hp

Spindle speed - 7500 rpm











HAAS VF-2DHE 4-AXIS MACHINING CENTER



HAAS VF-5/40 4-AXIS MACHINING CENTER

Technical specification



Table- 584 mm x 1321 mm/22.99 in x 52 in

Max table load - 1814 kg/4009 lbs

X axis - 1270 mm/50 in

Y axis - 660 mm/25.98 in

Z axis - 635 mm/25 in

Spindle power - 15 kW/20 hp

Spindle speed - 7500 rpm







DOOSAN LYNX 220LM CNC LATHE

Technical specification



Max turning diameter - 320 mm/12.60 in

Max turning lenght - 505 mm/19.88 in

Spindle power - 26 kW/35 hp

Spindle speed - 3400 rpm



Technical specification



Max part weight (main spindle) - 650 kg/1436 lbs

Max turning diameter - 658 mm/25.90 in

Max turning lenght - 1519 mm/59.80 in

X axis - 615 mm/24.21 in

Y axis - 1585 mm/62.40 in

Z axis - 260 mm/10.23 in

Spindle power - 22 kW/35 hp

Spindle speed - 12000 rpm





 MAZAK INTEGREX I-400ST LATHING AND MILLING CENTER

Technical specification



Head with rotary tools

Max turning diameter - 380 mm/14.96 in

Max turning lenght - 1500 mm/59.05 in

Spindle power - 26 kW/35 hp

Spindle speed - 4000 rpm





  MAZAK QT-250MY CNC LATHE

Technical specification



Table - 1050 mm/41.33 in

Max table load - 2000 kg/4420 lbs

  X axis - 1200 mm/47.24 in

Y axis - 1385 mm/54.53 in

Z axis - 900 mm/35.43 in

Max part diameter - 1250 mm/49.21 in

Spindle power - 37 kW/50 hp

Spindle speed - 10000 rpm







MAZAK VARIAXIS I-1050T 5-AXIS MACHINING CENTER WITH LATHING







Technical specification



Max lifting capacity - 20 kg/44 lbs

Max range - 1800 mm/70.86 in





KAWASAKI ROBOT

MEASURING EQUIPMENT

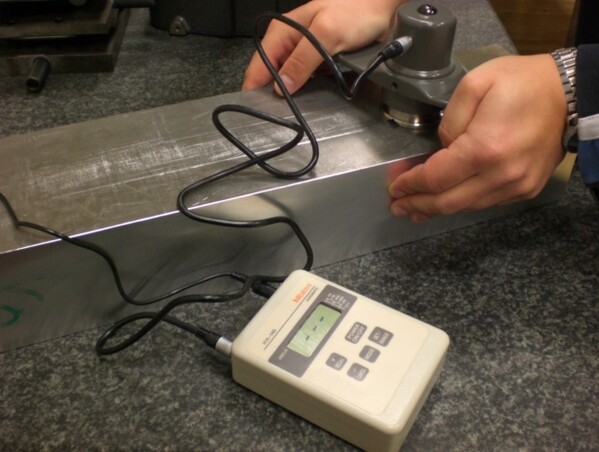

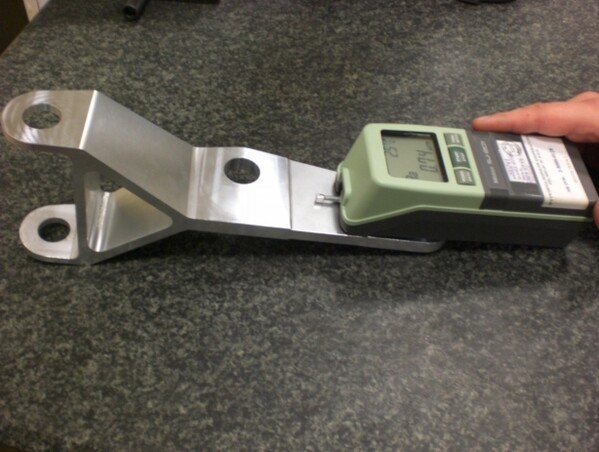

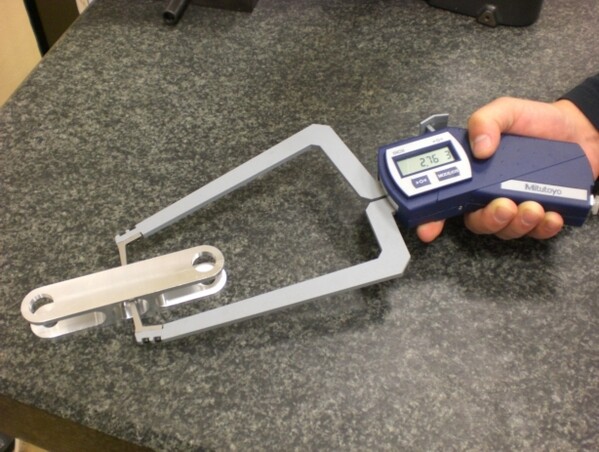

INSTRUMENTS FOR MEASURING



WALL THICKNESS, HARDNESS AND ROUGHNESS

Technical specification



Pallet dimensions - 1000 mm x 1000 mm/39.37 in x 39.37 in

Max pallet load - 3000 kg/6666 lbs

X axis - 1700 mm/66.93 in

Y axis - 1400 mm/55.11 in

Z axis - 1525 mm/60,04 in

Max part diameter - 2050 mm/80.70 in

Spindle power - 37 kW/50 hp

Spindle speed - 10000 rpm







MAZAK HCN 10800 HORIZONTAL 4-AXIS MACHINING CENTER



Technical specification

Technical specification



Table - 600 mm/23.62 in

Max table load - 500 kg/1111 lbs

X axis - 850 mm/33.46 in

Y axis - 550 mm/21.65 in

Z axis - 510 mm/20.07 in

Max part diameter - 730 mm/28.74 in

Spindle power - 11 kW/14.74 hp

Spindle speed - 12000 rpm









MAZAK J600/5X 5-AXIS MACHINING CENTER
